"A building materials company in Shanxi uses Liming's 800-1000 tons/hour dry sand production line. Through the combination of intelligent control system and high-efficiency equipment, it realizes the precise production of aggregates of various specifications, and the quality of the finished products is highly recognized by the owner."

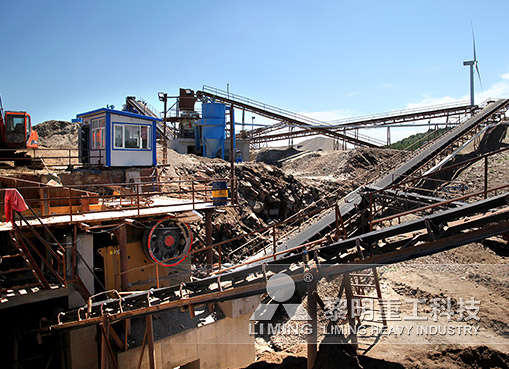

A large building materials company in Shanxi has put into production a limestone crushing and sand production line, which uses a complete set of equipment solutions provided by Liming.

Click to consult to learn about the construction plan of large stone production line

Basic information of the project

The project uses limestone obtained from mine blasting as raw material and adopts advanced dry processing technology. The production line has a designed capacity of 800-1000 tons/hour, and can produce finished aggregates of various specifications including 0-3mm, 3-8mm, 8-16mm, 16-28mm, 28-42mm, 42-75mm, etc.

The key equipment selected include:

F5X heavy-duty vibrating feeder

C6X series jaw crusher

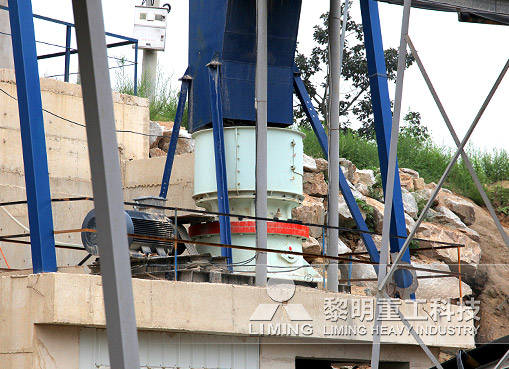

HST single-cylinder hydraulic cone crusher

VSI6X vertical shaft impact crusher

S5X series vibrating screening equipment

Project technical advantages

Process equipment coordination

The project adopts a new generation of high-efficiency equipment combination of Liming Group. The equipment in each link from primary crushing to precision sand making is reasonably matched to ensure that the final product meets the various quality indicators of engineering materials.

Application of intelligent control system

The production line is equipped with an advanced automatic control system to achieve precise control of equipment operation. This intelligent production method not only ensures the stability of operation, but also effectively reduces the intensity of manual maintenance and the overall production cost.

Multifunctional sand making equipment configuration

The VSI6X series impact crusher adopts an innovative structural design, integrating shaping and sand making functions. It can realize the conversion of different processing modes through simple adjustment to meet diverse production needs.

Heavy-duty feeding system guarantee

The F5X feeder adopts an impact-resistant design, which can effectively cope with the high-pressure working conditions of large-capacity silos and ensure stable feeding of the production line under heavy load conditions.

Since the production line was put into operation, its efficient and stable operation and high-quality product quality have been highly recognized by the owner. The technical solution demonstrated by the project provides a successful case for reference for the local building materials industry, fully demonstrating the development level of Liming sand and gravel aggregate production technology.
