Cone crushers have become the ideal choice for many companies when choosing fine and hard materials due to their high operating efficiency. Among them, single-cylinder cone crushers and multi-cylinder cone crushers are generally popular among users, but many people are not clear about the difference between the two when choosing. Both are hydraulic cone crusher products, what is the difference?

1. Differences in structure

Single-cylinder cone crusher: upper frame, lower frame, transmission shaft, moving cone, hydraulic cylinder, eccentric sleeve.

Multi-cylinder cone crusher: support sleeve, lower frame, transmission shaft, moving cone, adjustment ring, eccentric sleeve.

2. Comparison of components providing crushing force

Single-cylinder cone crusher: It is similar to the spring cone crusher. The main shaft and the moving cone are combined together and are supported by the bowl-shaped tile. Therefore, the main shaft and the moving cone are equivalent to the base support, and the eccentric sleeve drives the main shaft to provide crushing force.

Multi-cylinder cone crusher: Its main shaft is short and thick, and its diameter can be designed to be very large. It stands directly on the frame (not in the eccentric sleeve), and is directly supported by the frame. It provides a high bearing capacity, and the eccentric sleeve directly drives the moving cone to provide crushing force.

The difference in the mechanical structure of single-cylinder and multi-cylinder cone crushers determines that the frame forces of the two are also different when crushing ore. The frame of the former bears tensile stress, while the frame of the latter bears weakened tensile stress. Therefore, the multi-cylinder cone crusher has advantages in frame structure.

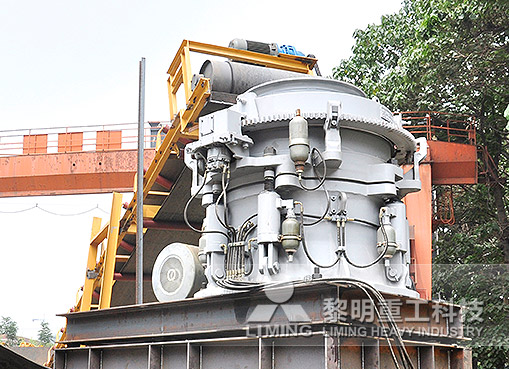

Single-cylinder cone crusher

3. Comparison in crushing effect

Single-cylinder cone crusher: better medium crushing effect, large throughput, better product particle shape, and rich applicable materials.

Multi-cylinder cone crusher: better fine crushing effect and good lamination crushing effect.

4. Comparison in production volume

Single-cylinder cone crusher: When crushing soft ores and weathered ores, the single-cylinder hydraulic cone crusher has a large throughput, which is 35%-60% higher than the traditional cone crusher, and the performance is more outstanding.

Multi-cylinder cone crusher: When crushing medium-hard and high-hard ores, multi-cylinder hydraulic cone crusher can produce more qualified products and its performance is more outstanding.
